ProTone T820

2-way line array element

ProTone T820 is a 2-way line array element that forms small size touring and installation sound systems. Joint use of ProTone T820 with subwoofer ProTone P718S creates a perfect full-featured sound system.

Low frequency part includes two neodymium 8” loudspeakers. High frequencies are radiated by two neodymium compression drivers with 3” membranes; drivers have directivity of 120x10 degrees and are fixed to waveguides of original shape.

The cabinet is made of 18mm plywood and has integral rigging system, which helps both fix the line array into stack and hang it up. Loudspeakers are well-protected by perforated steel sheets covered with powder coat. Acoustically transparent polymer foam saves from weather impact.

Components
LF 2X8" 380mm,
HF 1X3" 75mm
Frequency Response, Hz -3dB
65-18000
Power handling, W (AES)
500/90
Impedance, ohm
8 Ω / 8 Ω
Sensitivity, db
103/110
SPL / 1m
127/132
Nominal directivity (-6dB)
Horizontal
Conector
2хNeutrik SpeakON® NL4
Size HxWxD mm
248х800х426
Weight, kg
28
T820 04
T820 01
T820 02
T820 03

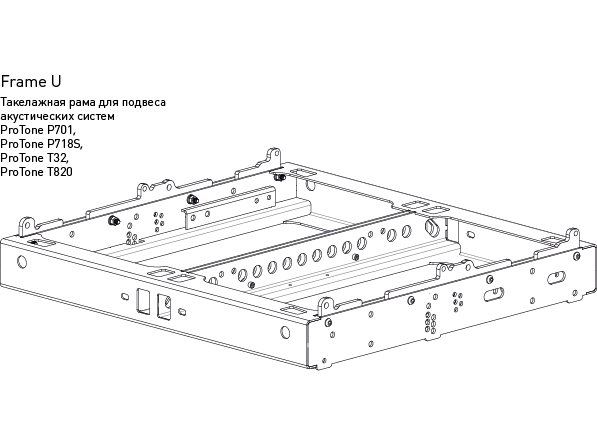

Frame protone u

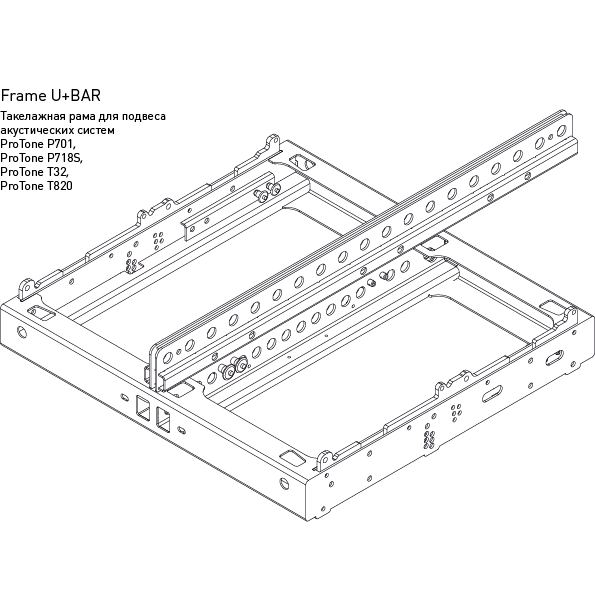

Frame protone u bar
Bar

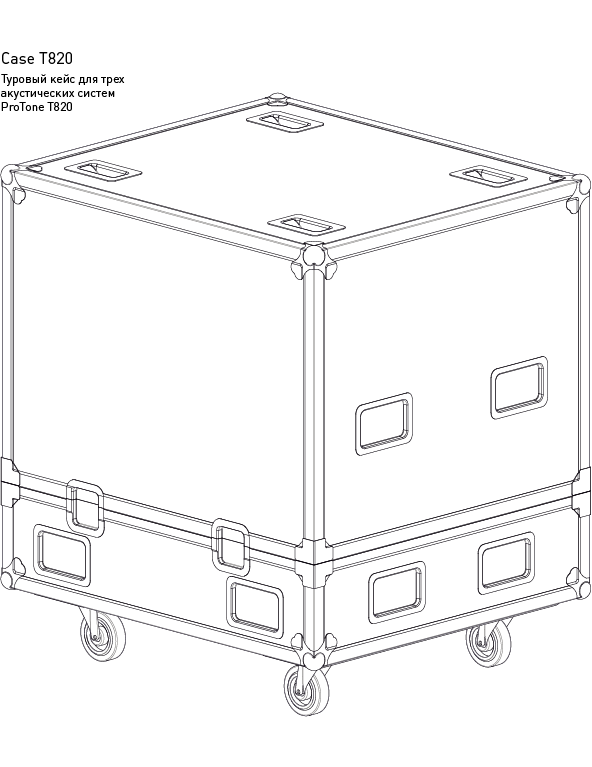

Case t820
