ProTone T35

3-way Tri-amped line array element

ProTone T35 is a three way Tri-amped line array element that forms large size touring and installation sound systems. It is a powerful and effective acoustic system with wide frequency range, low distortion and well-controlled polar pattern. 4 pcs of T35 is the minimum recommended quantity per cluster. It is advisable to use the ProTone T28 subwoofer combined with this model to extend the range of low frequency band.

Low frequency part includes two powerful neodymium 15” loudspeakers (bass-reflex configuration) that can reproduce bass down to 40 Hz. That is why ProTone T35 can be used without subwoofers. Four 6” loudspeakers emit mid frequency range and deliver both a clear voice and acoustic reproduction of instruments. These 6” loudspeakers have light moving elements and innovative acoustic design. High frequencies are radiated by three neodymium compression drivers with 3” membranes and 2” outputs, fixed horizontal directivity of 90 degrees and vertical inter-element variation from 0 to 6 degrees, depending on a waveguide.

The cabinet is made of 18mm plywood and has an integrated rigging system that helps both fix, stack and hang 16 elements together.

Loudspeakers are well-protected by powder coated perforated steel sheets. Acoustically transparent polymer foam provides protection in harsh weather conditions. The set consists of 3 line array elements trolley and synthetic fabric case.

Speaker component
Low 2x15" 380мм,
Mid 4x6,5" 165мм,
Hi 3x3" 75мм
Frequency Response, Hz -3dB
40-18000
Power handling, w(AES)
2200/1000/240
Horizontal Coverage
90
Vertical Coverage
5
Sensitivity, db
101/103/115
SPL 1m
131/133/139
Impedance, ohm
2х8/8/24
Conector
2хNeutrik Speakon NL8
Size HxWxD mm
436x1320x510
Weight, kg
94
T35 01
T35 02
T35 03

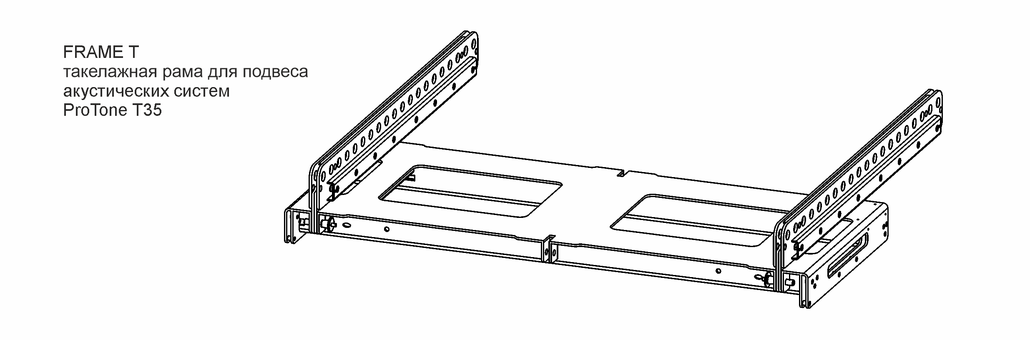

Framet

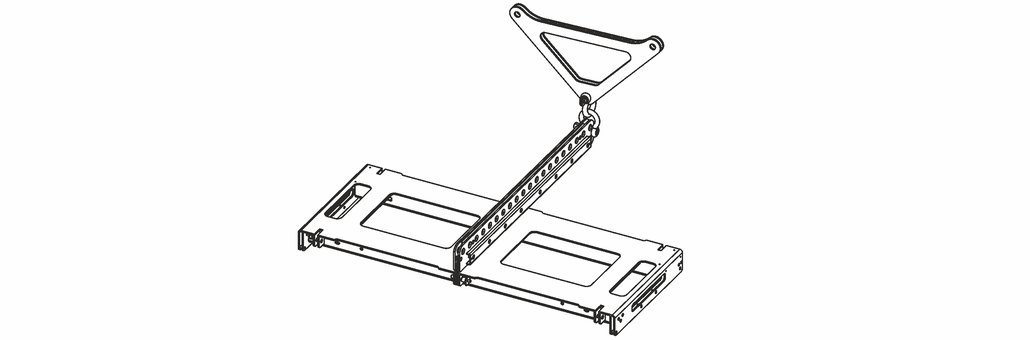

Frametdx

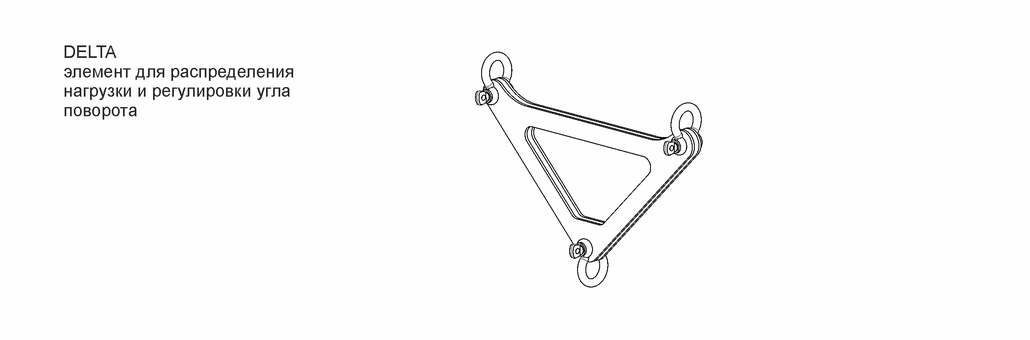

Deltax

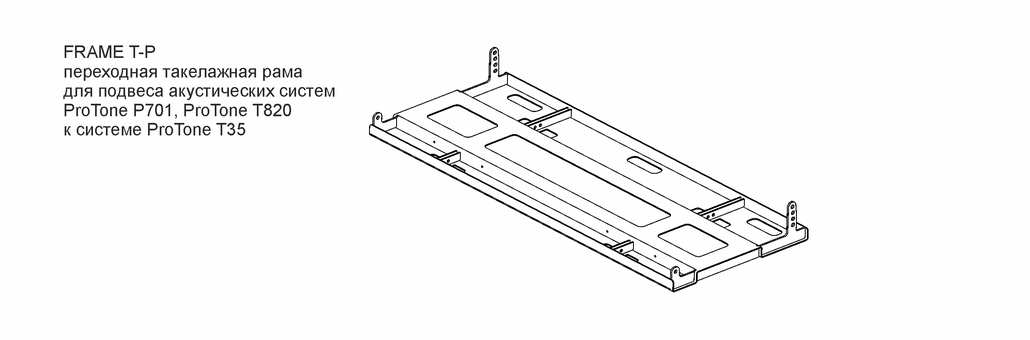

Frametpx

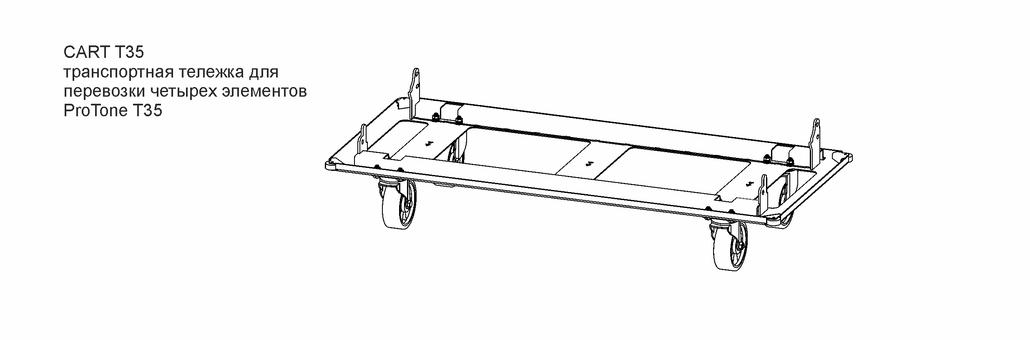

Cartt35x
