ProTone P701

3-way Tri-amped line array element

ProTone P701 is a three way Tri-amped line array element that forms a middle size touring and installation sound system. It may be used as a down fill, front fill and together with ProTone S and ProTone T35 systems. It is a powerful and effective acoustic system with wide frequency range, low distortion and well-controlled polar pattern. 3 pcs of Р701 are the minimum recommended quantity per cluster. We suggest using it in combination with ProTone Р718S subwoofer making full range system.

One powerful 12” loudspeaker is responsible for low frequencies (bass reflex configuration) that can reproduce bass down to 60 Hz. Med frequency range is taken care of two 6” loudspeakers that deliver both a clear voice and acoustic reproduction of instruments. These 6” loudspeakers have light moving elements and innovative acoustic design. High frequencies are radiated by neodymium compression driver with 3” membranes and 2” outputs, fixed horizontal directivity of 90 degrees and vertical inter-element variation from 0 to 6 degrees, depending on a waveguide.

The cabinet is made of 15 mm plywood and has an integrated rigging system that helps both fix, stack and hang 18 elements together. Loudspeakers are well-protected by powder coated perforated steel sheets. Acoustically transparent polymer foam provides protection in harsh weather conditions.

Speaker component
Low 12" 300мм,
Mid 2x6,5" 165мм,
Hi 3" 75мм
Frequency Response, Hz -3dB
60-18000
Power handling, w(AES)
600/260/90
Horizontal/ Vertical Coverage
90/10
Sensitivity, db
97/100/110
SPL 1m
128/128/131
Impedance, ohm
8/16/8
Conector
2хNeutrik Speakon NL8
Size HxWxD mm
350х800х455
Weight, kg
46
P700 04
P700 01
P700 02
P700 03

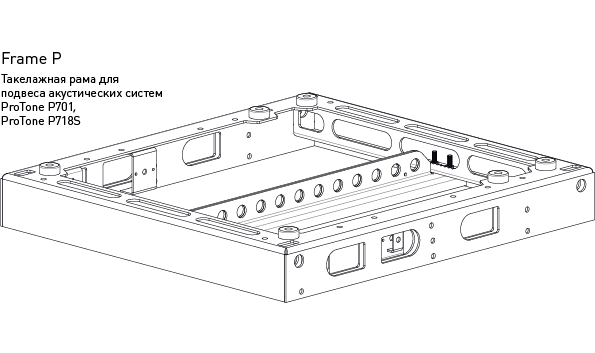

Frame protone p

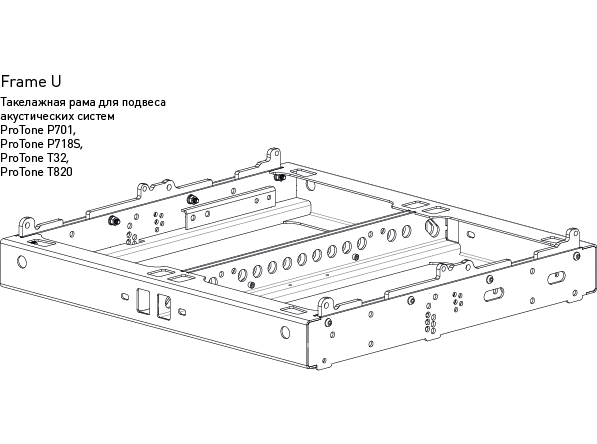

Frame protone u

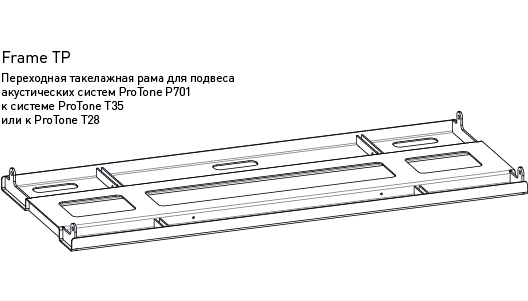

Frame protone tp

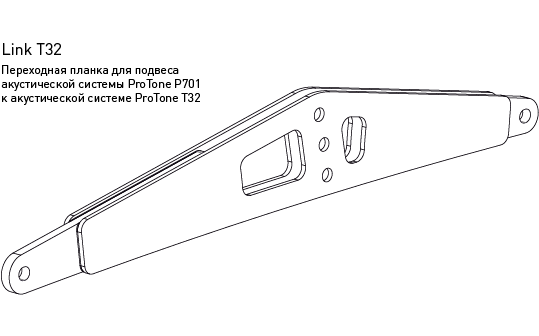

Link t32

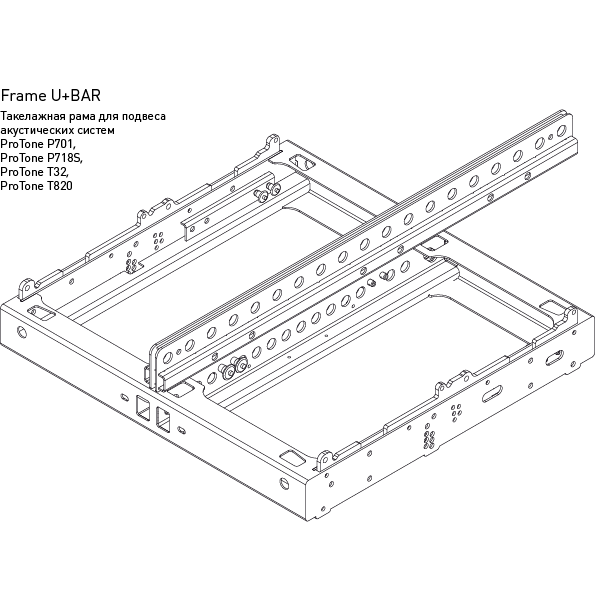

Frame protone u bar

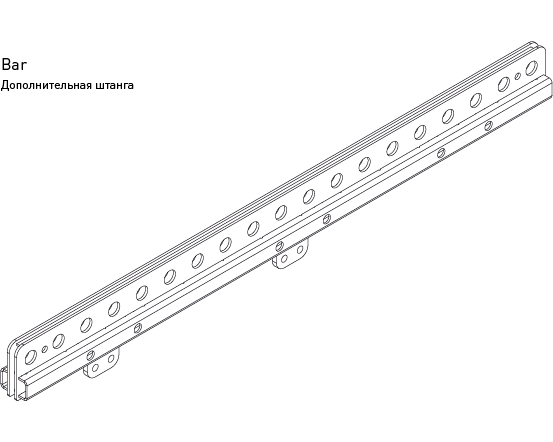

Bar

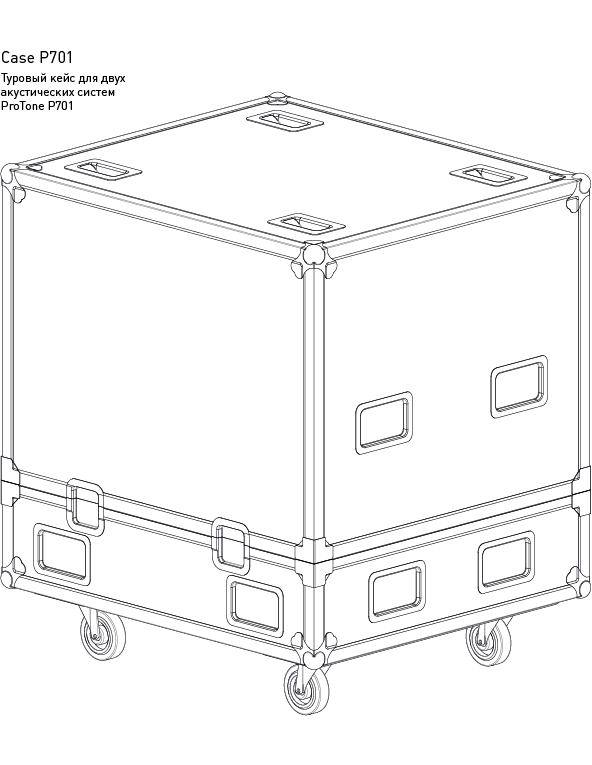

Case p701

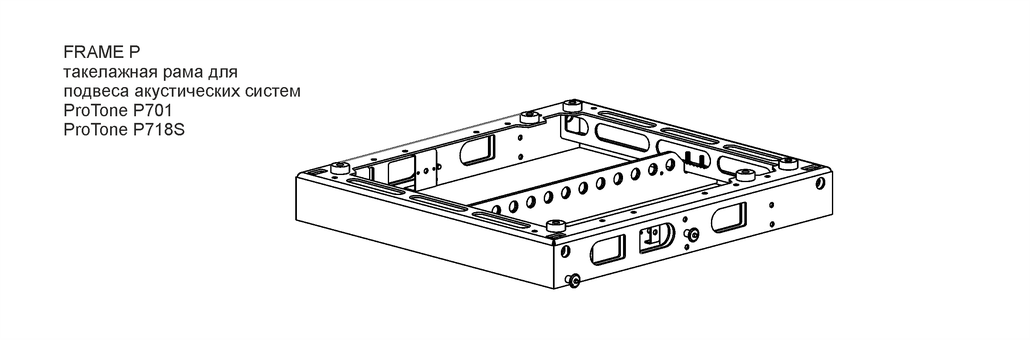

Framepx
