ProTone P718S

Subwoofer

ProTone P718S is a subwoofer that is suitable for middle size touring and installation sound systems. The Subwoofer is an add-on for the broadband elements of ProTone P701 line array. It may also be used together other ProTone acoustic systems.

Bass reflex enclosure. One long-stroke 18” loudspeaker with neodymium magnetic system is fixed in strengthened cabinet that is made of high quality Siberian birch plywood. The total power of loudspeaker is 1300W AES. The subwoofer can produce rated SPL 128 dB with 97 dB/1W/1M sensitivity.

The cabinet has integrated rigging system that allows both fix, stack and hang. Wheels are mounted on the rear panel. Loudspeakers are well-protected by powder coated perforated steel sheets. Acoustically transparent polymer foam provides protection in harsh weather conditions. The set includes synthetic fabric case.

Speaker component
18" 460мм
Frequency Response, Hz -3dB
35-120
Power handling, w(AES)
1300
Sensitivity, db
97
SPL 1m
128
Impedance, ohm
8
Conector
2хNeutrik Speakon NL4
2хNeutrik Speakon NL8
Size HxWxD mm
500x800х700
Weight, kg
56
Prod p718s variant 01
Prod p718s variant 02
Prod p718s variant 03
Prod p718s variant 04
Prod p718s variant 05
Prod p718s variant 06

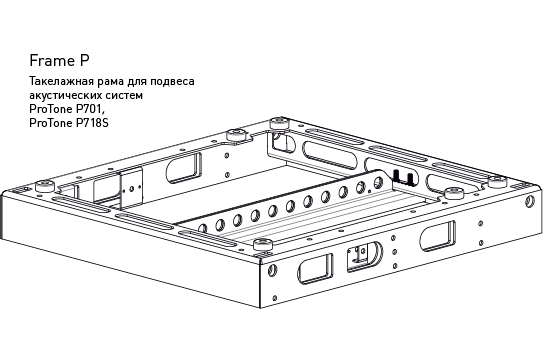

Frame protone p

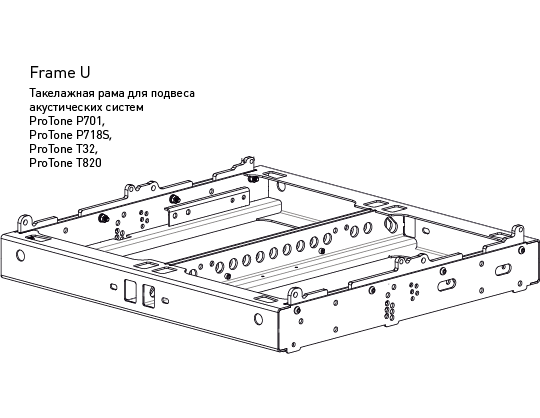

Frame protone u
Available to download:
